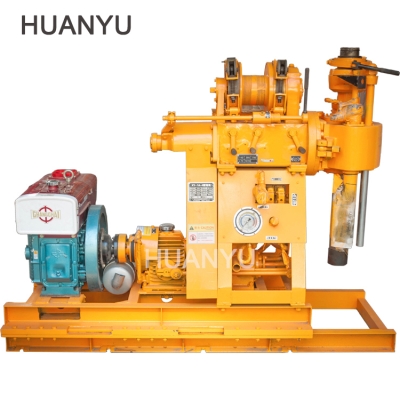

XY-1A-4 Hydraulic Drilling Rig

xy-1a-4 is a lightweight hydraulic drilling rig with simple operation and strong power. Based on XY-1A, a movable base is added to facilitate the replacement of drill pipes and drilling tools.

1. XY-1A core drilling rig is applicable to the general survey and exploration of solid deposits, engineering geological exploration and other drilling holes, as well as various concrete structure inspection holes.

2. XY-1A core drilling rig has a wide speed range and is equipped with high-speed gears. According to different geological conditions, bits such as diamond, cemented carbide and steel particles can be selected for drilling.

3. When the final hole is 75mm and 46mm respectively, the rated drilling depth is 100m and 180m respectively. The maximum opening diameter is allowed to be 150mm.
