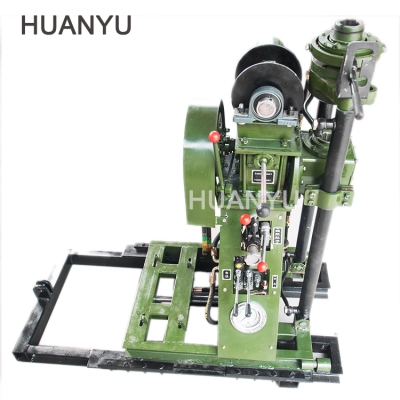

HY-50H Water Well Drilling Rig

The Type HY-50H rig is a high, medium and low speed rig with hydraulic feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed, large diameter of coring sample, etc. It is the advanced portable hydraulic drilling machine in China. It is especially suitable for coring operations in mountainous areas, hills, rivers and other special difficult terrains, as well as engineering geological surveys for railways, hydropower, traffic, bridges, dam foundations, etc.; geological core drilling, physical exploration; small grouting holes, Drilling of blastholes; drilling of small wells.

Model Rotary type: HY-50H

Drilling deep: 50-70m

Drilling diameter: 73-127mm

Rod diameter: 42mm

Drilling angle: 90°

Weight: 350kg

Dimension: 1600*600*1350mm

Engine Power: 8HP diesel engine power

Spindle

Spindle speed: 285 570r/min

Spindle stroke: 1000mm
